Khoom Taw Qhia

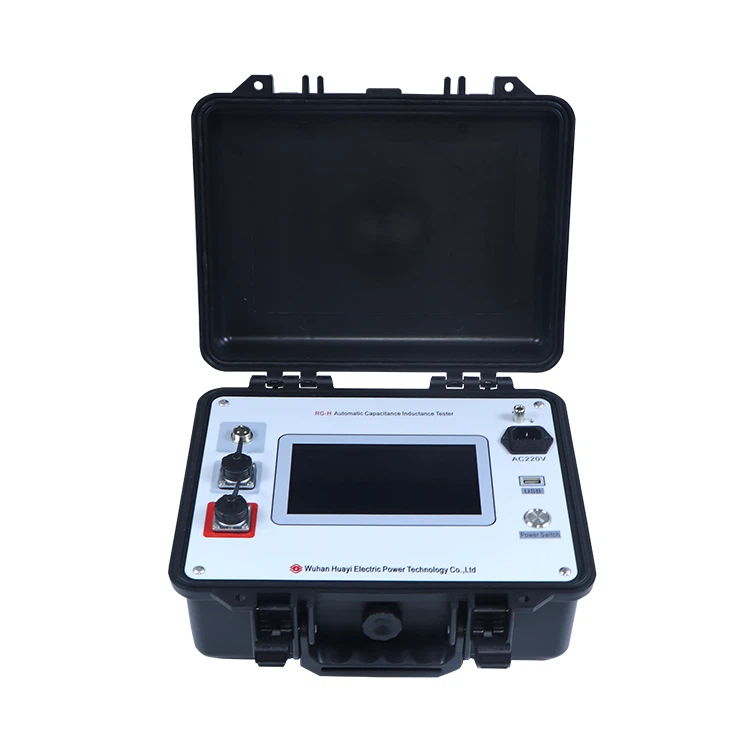

RG-H txais ib lub cim tshiab ntawm high-speed mixing microprocessors, sib xyaw ua ke, ib txhij sau cov khoom kuaj 'voltage signals thiab tam sim no cov cim, thiab txiav txim siab xam tus nqi capacitance, tus nqi inductance thiab reactive zog nqi. Field ntsuas capacitor yam tsis tau tshem tawm cov kev sib txuas, ua kom yooj yim rau kev sim, txhim kho kev ua haujlwm, thiab zam kev puas tsuaj rau cov khoom siv hluav taws xob. Tom qab qhov kev sim, cia li xam txhua theem capacitance tus nqi thiab lwm yam tsis, thiab tuaj yeem yooj yim paub qhov txawv ntawm cov capacitor zoo thiab txuas cov conductors faults ntawm cov khoom. Nyob rau tib lub sijhawm, cov cuab yeej nrog cov ntaub ntawv khaws cia thiab USB kev sib txuas lus ua haujlwm, tuaj yeem ua kom cov ntaub ntawv ntsuas kev ncaj ncees.
Lub tshuab ntsuas plaub-terminal yog siv los ntsuas qhov tseeb thiab rov ua tau zoo
Tsis siv neeg tam sim no ntu them nyiaj, thiab tag nrho ntau yam tam sim no linearization, txhim kho qhov ntsuas qhov tseeb ntawm qhov ntsuas
Lub capacitance thiab inductance tester tuaj yeem khaws txog 400 daim ntawm cov ntaub ntawv thiab muaj cov haujlwm ntawm cov ntaub ntawv keeb kwm query
Khoom Parameter
|
Capacitance ntsuas ntau thiab raug |
Capacitance ntsuas ntau yam:0.1uF-3300uF |
|
Qhov tseeb: ± (nyeem × 1%+0.005uF) |
|
|
daws teeb meem: 0.001uF |
|
|
Inductance ntsuas ntau thiab qhov tseeb |
Inductance ntsuas ntau: 100μH-50H |
|
Qhov tseeb: ± nyeem ntawv × 2% |
|
|
Fais fab mov thiab kuaj fais fab mov |
Fais fab mov: AC 220V ± 10%, 50Hz |
|
Output voltage (qhib Circuit Court): AC23V ± 10%, 50Hz (capacitance); AC3V ± 20%, 50Hz (inductance) |
|
|
Max tso zis tam sim no: 20A |
|
|
Output luv Circuit Court tiv thaiv: auto |
|
|
Cov xwm txheej ua haujlwm, qhov ntev thiab qhov hnyav |
kub: -10 degree -+40 degree ; txheeb ze humidity: Tsawg dua los yog sib npaug li 90% |
|
Lub party: 330 × 280 × 130mm (L × W × H); hnyav: 4.3kg |
|
|
Accessory box: 340 × 260 × 135mm (L × W × H); Nyhav: 3.6kg |
Khoom Feature Thiab Daim Ntawv Thov
1. Cov cuab yeej nruab nrog high-precision tam sim no clamp, teb ntsuas capacitor yam tsis tau tshem tawm cov cable, simplifying cov txheej txheem sim, txhim kho efficiency thiab tsis txhob muaj kev puas tsuaj rau cov khoom siv hluav taws xob.
2. Tom qab peb-theem xeem tiav, cia li xam tus nqi capacitance ntawm txhua theem thiab tag nrho cov nqi capacitance, reactive zog, thiab lwm yam tsis, yooj yim thiab intuitive, txo lub nra ntawm lub tester.
3. Kev ntsuas plaub-terminal: plaub-terminal ntsuas cov txheej txheem, ntsuas qhov tseeb, rov ua tau zoo
4. Automatic Compensation: tam sim no tsis siv neeg segmentation them nyiaj, tam sim no tag nrho teev linearly, txhim kho kev ntsuas precision
5. Cia nta: Max Storage 400 cov ntaub ntawv ntsuas, cov ntaub ntawv keeb kwm kev nug muaj peev xwm.
6. Kev sib txuas lus USB: USB kev sib txuas lus ua haujlwm nrog lub PC.
7. Loj kov Screen: 7-inch xim kov -screen LCD, intuitive interface, yooj yim rau kev khiav lag luam.
8. Kev ntsuas kub: saib xyuas qhov kub thiab txias, yooj yim sau cov nqi ntawm cov capacitors ntawm qhov sib txawv.
Kev Paub meej
Accessory
|
Serial Number |
Lub npe |
Tus nqi |
Serial Number |
Lub npe |
Tus nqi |
|
1 |
Mainframe |
ib |
8 |
5 ib fuse |
peb |
|
2 |
Kab (ib tug liab thiab ib tug dub, ob leeg muaj clamp, 5m) |
ib |
9 |
2 Ib fuse |
peb |
|
3 |
AC 220V fais fab mov |
ib |
10 |
Software CD |
ib |
|
4 |
Clamp tam sim no sensor |
ib |
11 |
Specification |
ib |
|
5 |
USB kev sib txuas lus cable |
ib |
12 |
Daim ntawv tshuaj ntsuam xyuas |
ib |
|
6 |
Kev xaim luv (nrog clamp, 2m) |
ib |
13 |
Daim ntawv pov thawj |
ib |
|
7 |
av lead |
ib |
|
|
|
