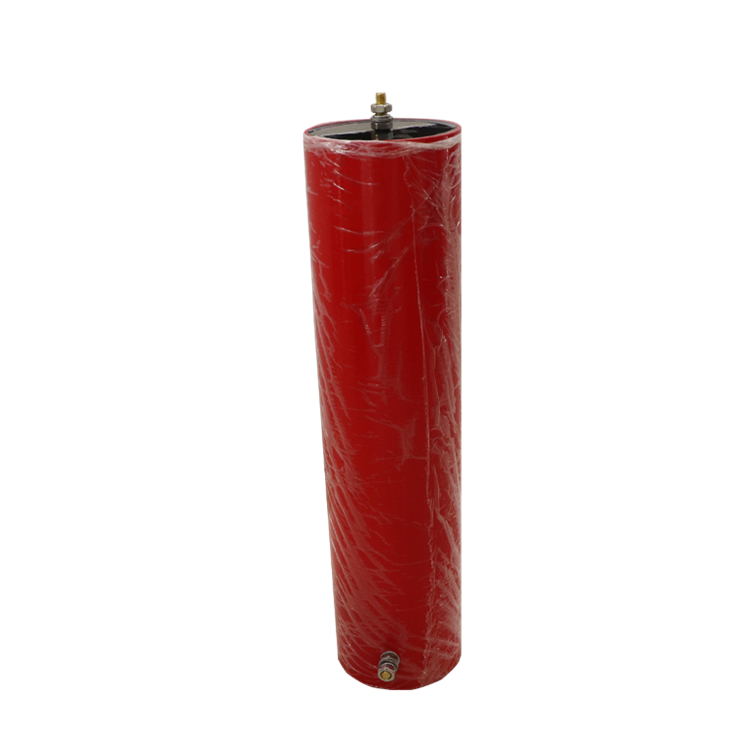

80KV VLF AC Hipot Test Set

High voltage withstands test ntawm cov khoom siv hluav taws xob yog ib qho tseem ceeb tshaj plaws uas tau teev tseg hauv kev ntsuas kev tiv thaiv kev tiv thaiv.

Kev ntsuas qhov ntsuas hluav taws xob tuaj yeem muab faib ua ac withstand voltage test thiab dc withstand voltage test. Qhov ntsuas hluav taws xob ac tuaj yeem muab faib ua lub zog zaus, hloov pauv zaus thiab {{0}}.1hz ultra-low zaus ntsuas tshuab, ntawm 0.1hz ultra-low zaus thev naus laus zis yog cov thev naus laus zis tshiab tau pom zoo los ntawm tam sim no thoob ntiaj teb electrotechnical commission. Peb lub tuam txhab lub cim tshiab ntawm ultra-low zaus thiab high voltage generators yog cov khoom tseem ceeb ntawm nws tus kheej tsim nrog cov thev naus laus zis tshiab hauv Asmeskas. Nws txais yuav ib qho 7-inch kov npo, qhov tseeb arm7 ib nti microcomputer, lub high-speed ad acquisition circuit, thiab yog nruab nrog software tswj keeb kwm yav dhau. Nws kov yeej ntau qhov tsis txaus ntawm cov khoom lag luam zoo sib xws (saib cov lus 1), thiab nws cov nqi ua tau zoo dua li cov khoom lag luam zoo sib xws. Nws yog qhov tshwj xeeb tshaj yog tsim rau kev ntsuas hluav taws xob ntawm cov khoom siv hluav taws xob nrog cov rwb thaiv tsev loj sib npaug (xws li cov hluav taws xob cables, lub zog hluav taws xob, lub tshuab hluav taws xob loj thiab nruab nrab, thiab lub cev muaj zog, thiab lwm yam), uas ua raws li lub teb chaws tus qauv ntawm kev lag luam hluav taws xob hluav taws xob. , general technical condition rau ultra-low zaus thiab high voltage generator (d) tshiab tawm hauv 2004 l / t849.4-2004.

VLF Hipot tester ua haujlwm video

1. Cov zis ntsuas hluav taws xob: 80 kV (nruab nrab)

2. tso zis zaus:0.1Hz,0.05Hz,0.02Hz

3. Load peev: 0.1Hz max 1.1µF

0.05Hz max 2.2µF

0.02Hz max 5.5µF

4. kuaj qhov tseeb: 3%

5. Qhov zoo thiab tsis zoo voltage ncov yuam kev: Tsawg dua los yog sib npaug rau 3％

6. Voltage waveform distortion: Tsawg dua lossis sib npaug rau 5％

7. Siv cov xwm txheej: sab hauv tsev thiab sab nraum zoov;:-10 degree -+40 degree: Tsawg dua lossis sib npaug li 85％RH

8.. Fais fab tuag: 220V ± 5%, 50 ± 5Hz

Lus Cim: Yog tias lub tshuab hluav taws xob nqa tau siv rau lub zog siv hluav taws xob, qhov tso zis hluav taws xob thiab zaus ntawm lub tshuab hluav taws xob yuav tsum tau ruaj khov (feem ntau Lub zog ntau dua 3kW, zaus 50Hz voltage 220V ± 5%

1. Kev siv thev naus laus zis: digital zaus hloov tshuab, microcomputer tswj, siab nce, siab txo, ntsuas, tiv thaiv, thiab lwm yam

2. Cov txheej txheem xeem yog automated.

3. Yooj yim rau kev khiav lag luam: yooj yim txuas, ua haujlwm ruam.

4. Kev tiv thaiv zoo: ntau yam kev tiv thaiv (kev tiv thaiv dhau-voltage, kev tiv thaiv tshaj tam sim no ntawm sab siab thiab tsis tshua muaj hluav taws xob), kev ua haujlwm nrawm (thaum ua yeeb yam) Chav tsev tsawg dua lossis sib npaug li 10ms), cov cuab yeej muaj kev nyab xeeb thiab txhim khu kev qha.

5. Kev nyab xeeb thiab kev ntseeg tau: tus maub los yog txuas nrog lub tshuab hluav taws xob qis ntawm lub tshuab hluav taws xob siab, nrog kev tswj xyuas photoelectric, kev siv nyab xeeb thiab txhim khu kev qha.

6. Qhov siab thiab tsis tshua muaj hluav taws xob kaw-loop tsis zoo tawm tswv yim tswj Circuit Court yog saws, thiab cov zis tsis muaj peev xwm nce.

7. Ua tiav configuration: capacitive kov npo, LCD Suav cim zaub, tsis siv neeg cia, tsis siv neeg luam ntawv.

8. Ntau qhov kev sim loj: 0.1Hz, 0.05Hz thiab 0.02hz ntau zaus xaiv, ntau qhov kev sim loj.

9. Cov ntim me me thiab lub teeb yuag: nws yooj yim heev rau kev ua haujlwm sab nraum zoov.
